Luigi Torchi

The machine of the italian Luigi Torchi was probably the first full-keyboard/direct multiplication machine in the world.

In the italian town of Milan operated the R.I. Istituto Lombardo Veneto di Scienze, Arti e Lettere (Royal Imperial Lombard-Venetian Institute of Sciences, Arts and Letters). Amongst the initiatives of this body there was the institution of the Premj d'Industria (Prizes for Industry), awarded every year to those entrepreneurs and firms that achieved distinction in their areas of activity. In 1834 the Golden Medal was awarded to the local carpenter Luigi Torchi for the invention and construction of a Macchina pei Conteggi (counting machine). Very little is known about the inventor, except that he was twenty-two and worked at the southern borders of the city of Milan. In charge of the assignment were the mathematician Gabrio Piola and the astronomer Francesco Carlini.

Carlini was so enthusiast about the Torchi’s contrivance to ask the Government an appropriation to build a more reliable metal model for the activities of the Brera's Astronomical Observatory. On May 6th, 1840 the Government confirmed the authorization with the following letter: "The Government authorizes the direction of the Imperial Royal Observatory to build the machine for counting, imagined by the carpenter Torchi, for the amount of Lire 1000." Carlini summoned Torchi: “I invite you to meet me in order to take concert and fix the price". At this point the story seems to come to an end, every trace of the machine is lost and we do not know wether Torchi ever replied to Carlini’s letter or accepted the proposal, but it seems sure that the improved model has never been built.

Thirty-two years later, in 1872, the famous astronomer Giovanni Schiaparelli (who first described the 'canals' on Mars) examined what remained of the Torchi’s machine and found it “lacking many pieces, almost all the front part containing the device for the preparation [the keyboard] and the reading of the results is missing”. Schiaparelli concluded that "the completion and repair require not only to examine the machine to get an idea of the nature of its mechanism, but also a long and expensive work of a clever craftsman”.

The ingenuity of Luigi Torchi revealed itself in other two instances. In 1835 Torchi invented a horse-less cart, exploiting the energy of the water stream, that moved along the canal towing-path, dragging the barge. An experiment was performed in October 1835 in the presence of H. M. the Viceroy: the boat and the barge went along a 212 meters stretch in 13 minutes and 25 seconds (0.948 Km/h). For this achievement, in 1837 Torchi was awarded another prize by the Institute, the Silver Medal. The fame of this invention spread as far as to France, as it can be read in an article on the Memorial Encyclopédique. Several years later, in 1858, Torchi designed an improved "pendulum level".

Almost nothing has been published on the mechanism of the Torchi’s calculator. Most of the sources available just praise the machine, e.g. in the Piola and Carlini’s report of the award: "It [the machine] responds to the touch of the keys [performing] the first three arithmetical operations with such a rapidity that the most experienced [human] computer cannot match its speed", and also "it is especially of great help when several multiplications should be carried out, where a factor remains constant, as for proportionate shares, to reduce weights and measures of one country into another's and it is useful to relieve the painful work of the [human] computers of tables.”

Only two documents propose a more thorough description of the Torchi’s calculator, perhaps both by the same author; one is the hand-written Report of the Award Committee, the second is an article published in the journal 'La Fama' in 1836, where we can find the description of the operations and the only known picture of the machine (see the sketch below). In spite of the poverty of the descriptions, two important peculiarity strike the attention: it was a ‘full-keyboard calculator’ and it performed multiplication ‘instantaneously’.

Machine was made by wood and iron wires, with dimensions 50 x 50 x 60 cm.

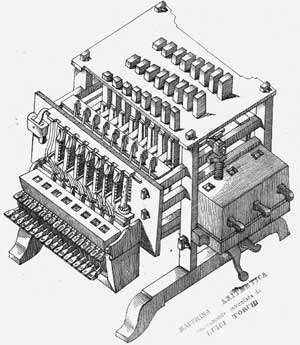

The calculating machine of Luigi Torchi (© Biblioteca Braidense, Milan, Italy)

Unless the fortuitous discovery of other documents or, almost impossible, of the machine or of parts of it, we cannot draw any definitive conclusion on the principle of operation of the Torchi’s contrivance and its innovative value. The lack of information may be attributable to Torchi himself, who would not have allowed any accurate inspection of his calculator to avoid possible plagiarism. In those times a craftsman was hardly protected from copies and Torchi's bent to secrecy seems thus understandable.

The latest documented news about Luigi Torchi is the 1858 article about the pendulum level, written by Angelo Parrocchetti and the Schiaparelli's notes of 1872. If, in nearly forty years since the prize, nothing more was recorded about the calculating machine and its inventor, one should think to a serious reason.

Why was the metal prototype never built? Maybe that the calculator was not as reliable as the elogiative descriptions bring us to understand. Perhaps Torchi himself was not self-confident enough to work with a different technology and with a greater precision; certainly the experience of a watchmaker or a manufacturer of scientific instruments was more appropriate. Perhaps, finally, the craftsman-inventor claimed more than the promised 1000 Lire.

What happened to the calculator? We know that it was probably exhibited in the Palace of Science and Arts of Brera since 1834 to 1837. It was then brought back to the Torchi’s shop, but it was again at the Brera Palace in 1872, when it was examined by Schiaparelli. We can imagine that, by that time very damaged and built with perishable material, it did not survive longer.

Literature
1) S. Hénin, "La macchina calcolatrice del falegname Luigi Torchi", PRISTEM Lettera Matematica, Luglio 2008, n. 68, pp. 39-42.
2) S. Hénin, "Two Early Italian Key-driven Calculators ", IEEE Annals of the History of Computing, 2010. n. 1, p. 34-43
3) F. Soresini, “Storia del Calcolo Automatico” Vol. 1, Confindustria, Roma , 1977;
4) M. d’Ocagne, “Le calcul simplifié”, Charles Babbage Institute, Reprint Series for the History of Computing, MIT Press, 1986;
5) F. Martin, “The Calculating Machines”, Charles Babbage Institute, Reprint Series for the History of Computing, MIT Press, 1992;
6) M. R. Williams, “A History of Computing Technology”, IEEE Computer Society Press, 1997;
7) J. Marguin, “Histoire des instruments et machines à calculer”, Parigi, Hermann, 1984 ;
8) P. Broglia, L. Mussio, “Il calcolo alla specola di Brera”, in: L’informazione territoriale e la dimensione tempo, VII Conferenza Nazionale dell’ASITA, Verona, 28 - 31 ottobre 2003, vol. 1, pp. 512-528;
9) Anon., “Macchina aritmetica inventata ed eseguita da Luigi Torchi milanese”, Gabinetto di scienze, arti ed industria , Supplemento a: La Fama, rassegna di scienze, lettere, arti, industria e teatri, Milano, P. Cominazzi ,1836-1840, Tavola X;
10) Collezione degli atti delle solenni distribuzioni de’ premj d’industria fatte in Milano e in Venezia dall’anno 1833 al 1839. Vol VI. Milano, Imperial Regia Stamperia, 1839;
11) G. Piola, F. Carlini, Relazione della Commissione Aggiudicatrice, non datata. Archivio Storico dell’Istituto Lombardo di Scienze e Lettere. Concorsi a premj d’industria agricola e manifatturiera, 1834, titolo VI, cartella n.5/34, “Aritmetiche macchine”;
12) G. B. Carta, “Biografia degli italiani illustri nelle scienze, lettere ed arti del secolo XVIII e de’ contemporanei …”, Annali Universali di Statistica, Milano, Vol. 45, luglio-agosto 1835, p. 208;
13) F. Carlini, "Per la costruzione in metallo della macchina pei conteggi inventata da Luigi Torchi.", Archivio dell' Osservatorio Astronomico di Brera. C41: f 157. A 041/021 AAN;
14) Comunicazioni varie tra l’Istituto, l’Osservatorio, l’Avv. Remedio e l’Ing. Imperatori, Archivio Storico dell’Istituto Lombardo di Scienze e Lettere. Concorsi a premj d’industria agricola e manifatturiera, 1834, titolo VI, cartella n.5/34, “Aritmetiche macchine”;
15) Anon., “Nuovo Dizionario Universale Tecnologico o di Arti e Mestieri”, Venezia, 1836, vol. XVI, pp. 236 – 237;
16) Anon., “Nuovo meccanismo per rimontar le correnti inventato ed eseguito da Luigi Torchi”, Gabinetto di scienze, arti ed industria , Supplemento a: La fama, rassegna di scienze, lettere, arti, industria e teatri. Milano, P. Cominazzi ,1836-1840, Tavola IV;
17) Anon., “Premj proposti dall’Accademia delle Scienze di Parigi per l’anno 1836”, La Fama : rassegna di scienze, lettere, arti, industria e teatri. Milano, P. Cominazzi, 15 gennaio 1836, n. 7, p. 26;
18) Correspondence of G. Belli a G. Piola, 11 agosto 1835, s.d., 16 aprile 1841, Fondo Storico del Politecnico di Milano, Sez. Belli.
19) A. Parrochetti, “Livello a pendolo, invenzione di Luigi Torchi”, Giornale dell'ingegnere, architetto ed agronomo, Febbraio 1858, Volume 6, pp. 121-123;
20) Anon., “Atti della solenne distribuzione de’ premj d’agricoltura ed industria fatta il dì 4 ottobre 1834”, Biblioteca Italiana ossia Giornale di letteratura scienze ed arti, Vol. 76, dicembre 1834, pp. 462-467;
21) T. Gonnella, “Descrizione di due macchine aritmetiche per l'addizione immaginate e costrutte da Tito Gonnella ...”, Firenze, Tip. Calasanziana, 1859;
22)“Catalogo degli oggetti d’arti e manifatture esposti nelle sale dell’I. R. Palazzo di scienze ed arti di Brera”, Annali Universali di Statistica, economia pubblica, storia, viaggi e commercio , Milano, Novembre 1838, Serie 1, Volume 58, p. 200, n. 81;
23) G. Bigatti, “La città operosa. Milano nell’Ottocento”, Milano, FrancoAngeli, 2000;
